cany Posted June 17, 2017 Posted June 17, 2017 (edited) I have this wire I was told its no good for a build on the mutation x v4 on an RX200 Is this true? Edited June 17, 2017 by cany
Walt Posted June 17, 2017 Posted June 17, 2017 Was there any explanation regarding why it may not be good? One of my favorite wires is 26*2+36. I don't have any premade but I just spun up about a foot of it tonight and installed it an a single coil Ammit. Great flavor producer and good control with TC. It is pretty low in resistance. Maybe it would be hard to get enough crammed into the atty to get a decent resistance as it is a two coil device. That may be the reason. Two 3mm diameter coils at 6 wraps each would only result with about .13Ω. For a 22mm deck with staggered posts that might be a bit difficult although your RX200 will handle down to .1Ω in wattage mode. Still really pushing the limit. Nicrhome80 or Kanthal would be easier offering more resistance.
cany Posted June 17, 2017 Author Posted June 17, 2017 I think he said it has a long ramp up time Funny part is he told me to buy it a while ago
Walt Posted June 17, 2017 Posted June 17, 2017 24 minutes ago, cany said: I think he said it has a long ramp up time Funny part is he told me to buy it a while ago Ok, ya stainless takes longer to ramp up than some other wires but it's not crazy long or anything like that. Just builds heat a little slower as you draw.
cany Posted June 17, 2017 Author Posted June 17, 2017 Mayyb Ill try to find a build for the mutation and try it
Walt Posted June 17, 2017 Posted June 17, 2017 Ya, why not. Jump on steam engine and see what you can come up with. You won't waste more than a foot of wire.
cany Posted June 17, 2017 Author Posted June 17, 2017 Im no good at figuring out builds I usually just ask someone lol

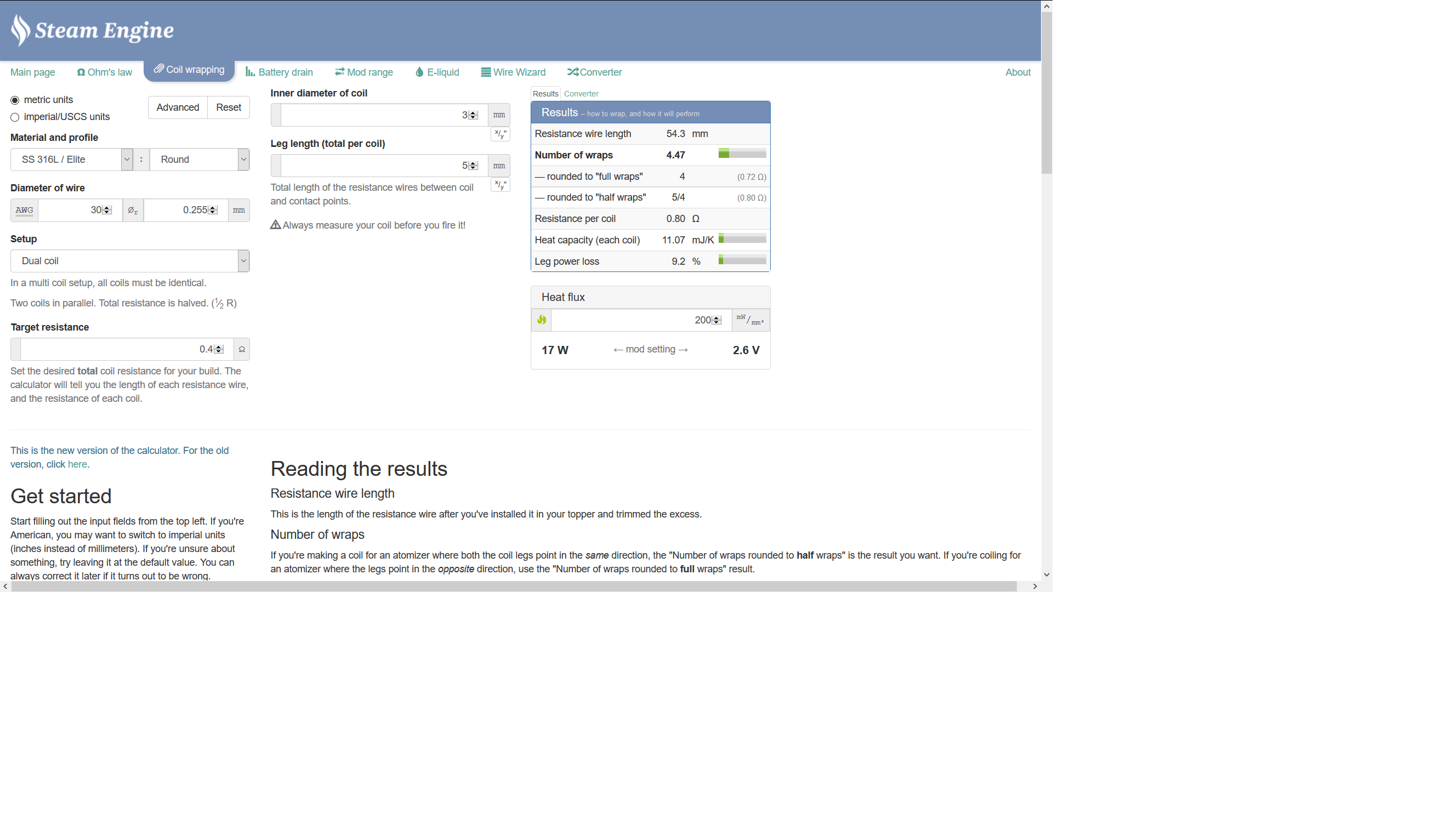

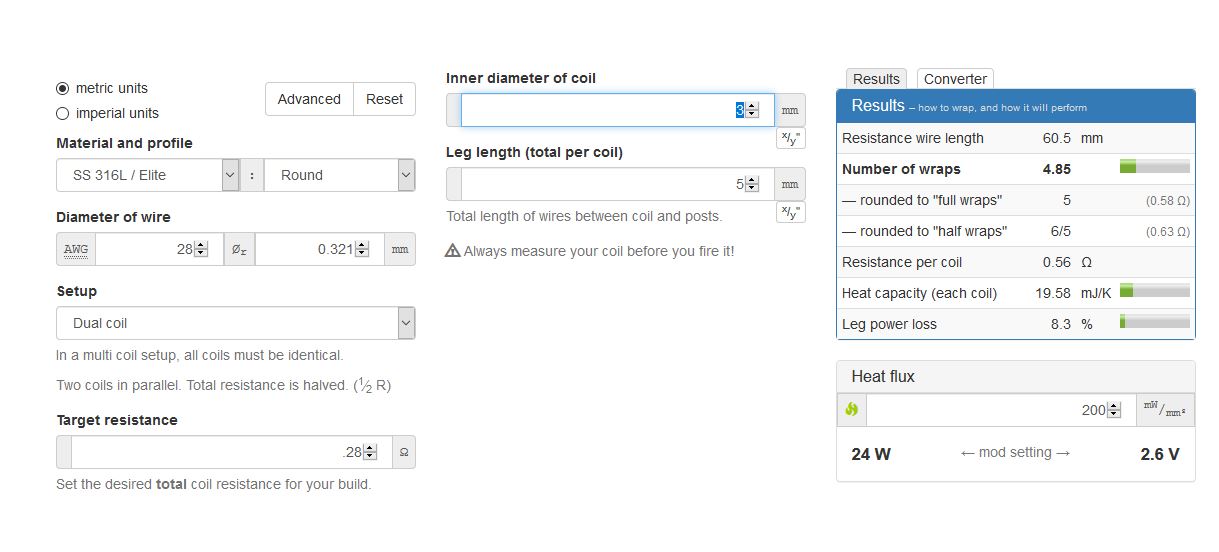

Walt Posted June 18, 2017 Posted June 18, 2017 8 minutes ago, cany said: @Walt does this seem right ?? Yup, That's about right. 30g is going to be really difficult to work with though. Pretty thin. The lowest I go is 28 and even then I have to be real careful with pulling my cotton through without deforming the coil. You have discovered the problem with SS wire. It takes a lot of wire to get any resistance. This would be more reasonable:
Walt Posted June 19, 2017 Posted June 19, 2017 If you have room, this is a nice build using a simple parallel core Clapton that will yield right around .25Ω. Great flavor build!!!
cany Posted June 19, 2017 Author Posted June 19, 2017 11 minutes ago, Walt said: Yup, That's about right. 30g is going to be really difficult to work with though. Pretty thin. The lowest I go is 28 and even then I have to be real careful with pulling my cotton through without deforming the coil. You have discovered the problem with SS wire. It takes a lot of wire to get any resistance. This would be more reasonable: Thanks Im trying too use the wire I have now But I am looking for more. Can you suggest anything from the VT store It all looks the same too me
Walt Posted June 19, 2017 Posted June 19, 2017 This is pretty good stuff: https://www.vaportalk.com/us/shop/geek-vape-ss-twisted-clapton-tc-28ga2twisted-30ga/# Give me a minute. I want to look elsewhere real quick
cany Posted June 19, 2017 Author Posted June 19, 2017 1 minute ago, Walt said: This is pretty good stuff: https://www.vaportalk.com/us/shop/geek-vape-ss-twisted-clapton-tc-28ga2twisted-30ga/# Give me a minute. I want to look elsewhere real quick Isnt that almost what I have now?
Walt Posted June 19, 2017 Posted June 19, 2017 https://www.advancedvapesupply.com/collections/spooled-ss-prebuilt-wire/products/up-to-30-fused-clapton-316l-ss-core-28gx2-34g This isn't bad.
Walt Posted June 19, 2017 Posted June 19, 2017 Oh ****!!!! I'm sorry. I went up to the top of the thread and saw the spool you have. My mistake. From the screen shot you posted I thought you were using straight 30g. Hold on for a sec. Be right back.

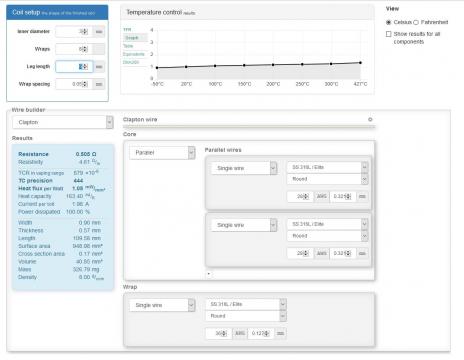

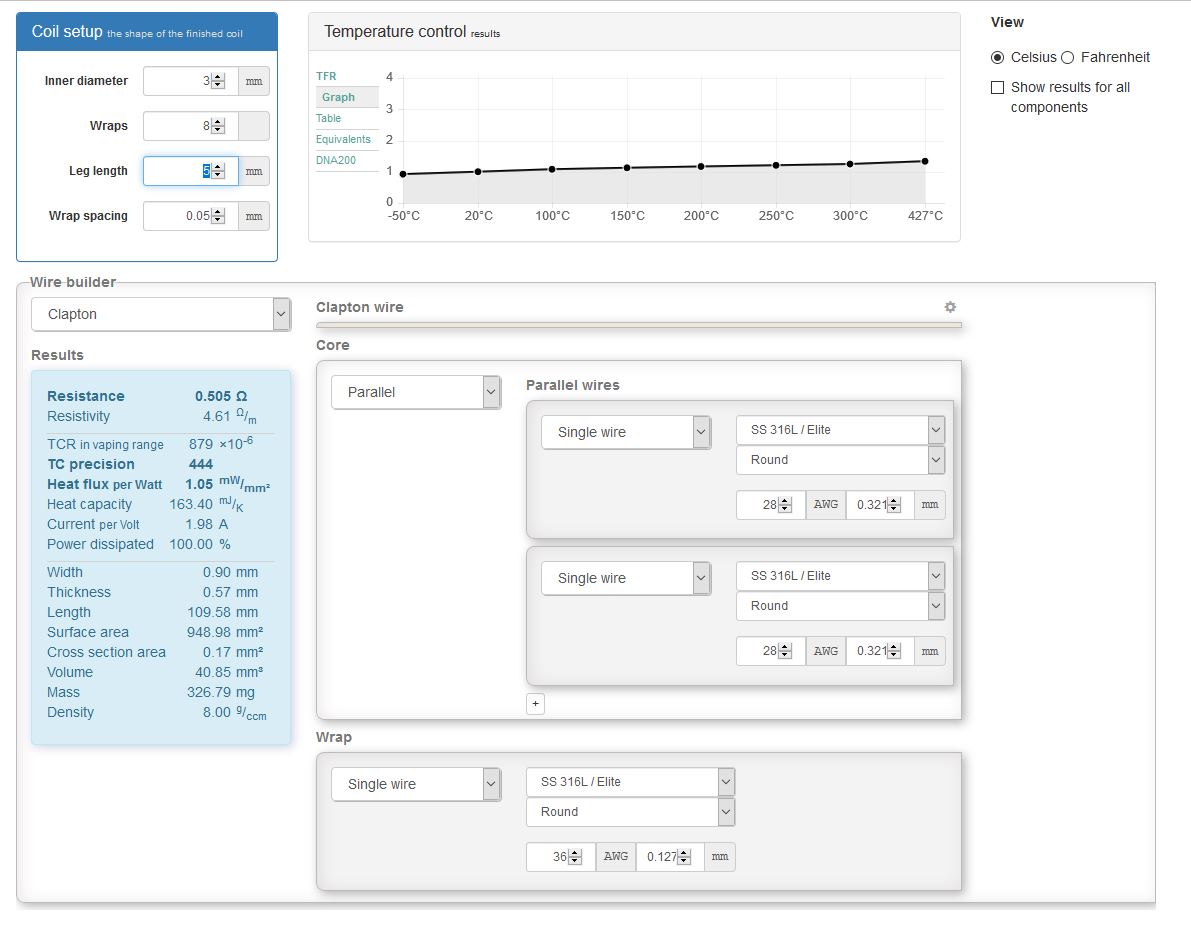

Walt Posted June 19, 2017 Posted June 19, 2017 Ok, here is a good build for the 26*2+30 that you have if you can get 10 wraps on each coil. It will give you about a .23Ω build overall.
Walt Posted June 19, 2017 Posted June 19, 2017 For clapton wire you have to use the wire wizard on steam engine and then divide the result resistance by two.
cany Posted June 19, 2017 Author Posted June 19, 2017 Thanks @WaltIm gonna scrap using the fancy wire its too much for me too figure out
Walt Posted June 19, 2017 Posted June 19, 2017 Give it time. It will sink in. Just make two coils, each with 10 wraps with that wire and give it a shot. Use a 3mm rod. Should make some great fog!
Walt Posted June 19, 2017 Posted June 19, 2017 Oh no! I'm afraid to have you use less because the resistance will be really low. Might have to use some Kanthal if you have some.
cany Posted June 19, 2017 Author Posted June 19, 2017 Thanks Was trying too use that wire I have Kanth
