Rixter Posted September 13, 2013 Share Posted September 13, 2013 My 3.5mm silica wick from Mesh Wizard arrived in today's vape mail, so a little while ago, I rebuilt some KPT & EVOD heads with it. This fatter wick fills the wick slots nicely and provides a smooth draw, while eliminating the need to add a "flavor wick" to prevent leaking & gurgling. With the fatter 3.5mm silica, it only takes a 4/3 wrap* of 32g Kanthal A-1 to make a ±1.8Ω coil, as opposed to a 5/4 wrap with the 2mm silica. I'll post the results after I vape a few tankfulls, but I'm pretty sure I've found a winner. * For anyone who doesn't already know, a 4/3 wrap simply means that your coil will have four loops on the outside and 3 on the inside...it saves on confusion as to how many actual wraps there are to a coil. Link to comment Share on other sites More sharing options...
Tam Posted September 13, 2013 Share Posted September 13, 2013 How do you put three loops in the inside of a wick? Or am I confusing something? Link to comment Share on other sites More sharing options...
Aquatroy Posted September 13, 2013 Share Posted September 13, 2013 yeah i toss every coil that comes with my tanks... they are always dead. and im not sure why... but maybe its just from being shipped in the tank and it gets jostled around too much. Those coils are in the same shipping container as the tanks, I can't figure it out. I think the problem is disgruntled workers ie bad workmanship. Kanger needs to pay better. And the gift boxes on the v1s was stupid ... Link to comment Share on other sites More sharing options...
Rixter Posted September 13, 2013 Share Posted September 13, 2013 How do you put three loops in the inside of a wick? Or am I confusing something? I meant that if you look at one side of a coil, there will be one more loop than on the other side of the same coil. Link to comment Share on other sites More sharing options...
Tam Posted September 13, 2013 Share Posted September 13, 2013 I meant that if you look at one side of a coil, there will be one more loop than on the other side of the same coil. As in four loops on top and three on the bottom/underneath part of the wick/coil? Rixter 1 Link to comment Share on other sites More sharing options...

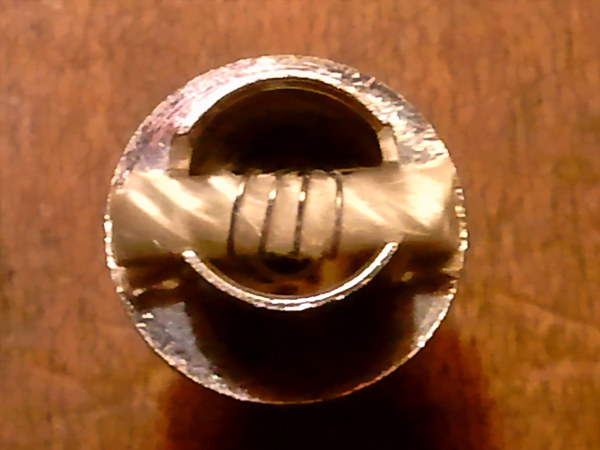

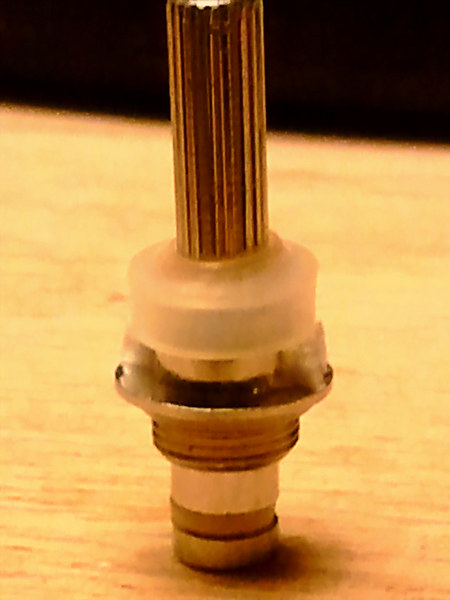

Rixter Posted September 13, 2013 Share Posted September 13, 2013 Heres the rebuilt head with the top stem and cup seal removed... ...and here's the finished product. Link to comment Share on other sites More sharing options...
Tam Posted September 13, 2013 Share Posted September 13, 2013 Thanks, Rixter, I get it now. And this gives you 1.8 ohm? So, if I wanted a 2.0 or 2.2 ohm coil, I'd just have to put another wrap or two into it? Also, does it make a difference if you wrap the wire closer together? Link to comment Share on other sites More sharing options...
rcoe Posted September 13, 2013 Share Posted September 13, 2013 Wow. that looks a heck of a lot better than they do coming out of the box! Link to comment Share on other sites More sharing options...
Bebop Posted September 13, 2013 Share Posted September 13, 2013 Those coils are in the same shipping container as the tanks, I can't figure it out. I think the problem is disgruntled workers ie bad workmanship. Kanger needs to pay better. And the gift boxes on the v1s was stupid ... Could they be offing faulty coils?? Link to comment Share on other sites More sharing options...
Rixter Posted September 13, 2013 Share Posted September 13, 2013 (edited) Thanks, Rixter, I get it now. And this gives you 1.8 ohm? So, if I wanted a 2.0 or 2.2 ohm coil, I'd just have to put another wrap or two into it? Also, does it make a difference if you wrap the wire closer together? Yeah, each additional wrap will add just a little more resistance...trial and error is all I can say about that. You can wrap as close as you'd like as long as the wraps aren't touching each other. Wow. that looks a heck of a lot better than they do coming out of the box! They work a heck of a lot better than they do coming out of the box, too. By the way, I just got finished taking some step by step pictures of the entire rebouilding process from start to finish, so I'll be posting a pictorial tutorial shortly. I'll provide a link in this thread when I've finished it. Edited September 13, 2013 by Rixter Tam 1 Link to comment Share on other sites More sharing options...
Tam Posted September 13, 2013 Share Posted September 13, 2013 Have you tried the ribbon wire, Rix? Or heard about anyone who uses it? I'll probably order the 32 gauge and the 34. The 32 is too big to fit into my Vision Eternity RBA so I'm hoping the 34 might but I'm curious about the ribbon one... Link to comment Share on other sites More sharing options...
Rixter Posted September 13, 2013 Share Posted September 13, 2013 Okay, here ya go. Tam 1 Link to comment Share on other sites More sharing options...
Rixter Posted September 13, 2013 Share Posted September 13, 2013 Have you tried the ribbon wire, Rix? Or heard about anyone who uses it? I'll probably order the 32 gauge and the 34. The 32 is too big to fit into my Vision Eternity RBA so I'm hoping the 34 might but I'm curious about the ribbon one... I haven't tried ribbon resistance wire yet because I've had such good success with standard Kanthal wire. I use 32g for BCC heads and 29g for Genesis RBAs. Link to comment Share on other sites More sharing options...
IMEDICx90 Posted September 13, 2013 Share Posted September 13, 2013 I use ribbon wire tam. What would you like to know. Link to comment Share on other sites More sharing options...
Tam Posted September 13, 2013 Share Posted September 13, 2013 I use ribbon wire tam. What would you like to know. You know what, Medic? So I don't put this thread more off topic than it already is I'll start a new thread and, if it's okay, will pick your brain there. Link to comment Share on other sites More sharing options...
IMEDICx90 Posted September 13, 2013 Share Posted September 13, 2013 Sure no problem! Follow tam everyone! New thread time!!! And story time too if your good. Tam 1 Link to comment Share on other sites More sharing options...
DAYVAPE Posted September 13, 2013 Share Posted September 13, 2013 (edited) So have you guys tried the 'nano micro coil' in one of these heads? They sure look like they work amazingly well in the videos by 'Rip Trippers' ! 12 freakin' wraps.. that's just nuts! The concept sure seems like it would work... I mean we've been using the same coils in all of the normal atomizers for years... just like the ones in the HH 357's. http://www.youtube.com/watch?v=cIoH-mOXKsc&feature=c4-overview&list=UUgZd5ygXFoQry9KDGlddSBg Edited September 13, 2013 by DAYVAPE Link to comment Share on other sites More sharing options...
Aquatroy Posted September 13, 2013 Share Posted September 13, 2013 Sure no problem! Follow tam everyone! New thread time!!! And story time too if your good. I'd follow Tam anywhere..... Link to comment Share on other sites More sharing options...
Tam Posted September 14, 2013 Share Posted September 14, 2013 I'd follow Tam anywhere..... You're so sweet, Troy! I'm happy to have the company for when I get us totally lost... Link to comment Share on other sites More sharing options...
Aquatroy Posted September 14, 2013 Share Posted September 14, 2013 Fumbling for compass.. Hoping your high and dry down south..... Link to comment Share on other sites More sharing options...
Tam Posted September 14, 2013 Share Posted September 14, 2013 Fumbling for compass.. Hoping your high and dry down south..... We've got a flood warning until 8:22 tomorrow morning, which was weird because I could see blue sky peeking behind the clouds when the warning came up. We can use some rain but can we put in the order for a light rain lasting all night long? Hope you're safe and dryer than you were yesterday. Aquatroy 1 Link to comment Share on other sites More sharing options...
